| Name: | HD flexible creative led display screens indoor video led sign board | Color: | RGB |
|---|---|---|---|
| SMD: | 1010 | Brightness: | >1000cd |
| Refresh rate: | >1200HZ | Weight: | <10kg/pc |
| إبراز: | أدى الشاشة,عرض كامل اللون أدى,full color led display |
||
HD flexible creative led display screens indoor video led sign board
-Specification
| Unit module | Item | Parameter |
| Model number | P1.923-26S | |
| Module size | 200mm*100mm | |
| Pixel pitch | 1.923mm | |
| Pixels density | 270410dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD 3in1-1010 | |
| Pixel resolution | 104dots(W)*52dots(H) | |
| Max Power | 25W | |
| Module thinkness | 17mm | |
| Weight | 0.5kg | |
| Drive type | Constant drive | |
| Scan mode | 1/26scan | |
| Port type | HUB 75 | |
| Brightness of white balance | 1000cd/m2 | |
| LED Cabinet | Dimension | 400*200mm |
| Monomer Module Number | 4 | |
| Power supply | 5V/60A*2pc | |
| Thermal discharge | fan 1pc | |
| Pixel per cabinet | 208*104 | |
| Best viewing distance | 2M~10M | |
| Best viewing angle | 140°(W)140°(H) | |
| Temperature |
Storage:-35℃~+85℃ Working:-20℃~+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 80mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 260W/m2 | |
| Max.Power consumption | ≤800W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium 4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | constant drive IC |
| Refresh frequency | ≥6=1200Hz | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
All product specifications are for reference only and subject to change without prior notice;
Please contact sales for details;
System
| Packing details | Standard Packing, EPE packing, Cartons etc. |
|
Inner Packing: Electrostatic bag.
Outdoor Packing: Industrial barrels. |
|
| Delivery time | 3~5 days for samples. |
| 7~15 days for batch orders. | |
| Shipping | DHL, FedEX, TNT, UPS, EMS etc, By sea or By air. |
| By your express account or your forwarder. |

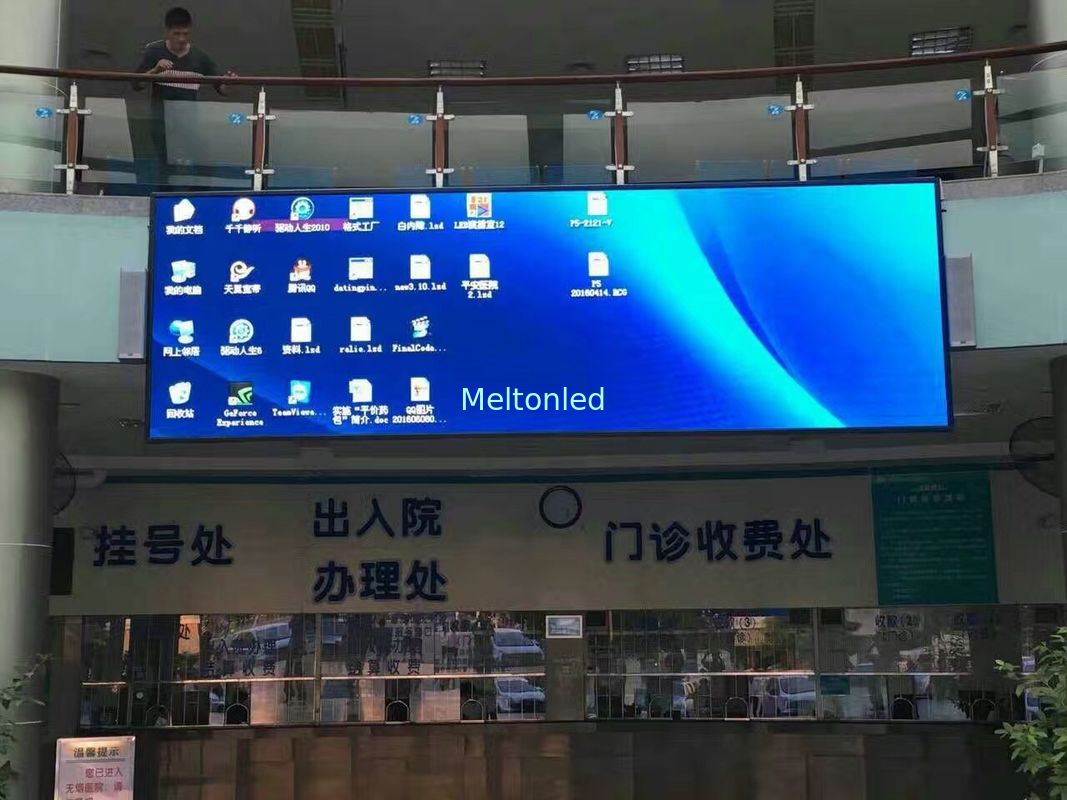

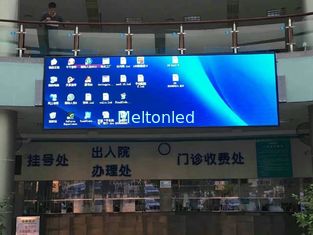

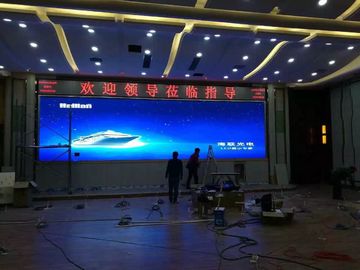

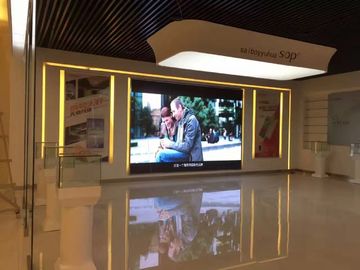

Applications:
This kind of LED full color mobile led display screen is appliled for advertising, city beautifying, information publicity, great concerns and relative activities.
Application Areas :
·---Outdoor advertising, digital billboards, advertising in big companies
·---Sports halls, fields, playgrounds.
·---Airports, bus stations and railway passenger terminals.
·---Facades of shopping malls, department stores, banks and car dealerships.
·---Architecture and social projects, information systems in cities.
·---Show-business, concerts, festivals, motor shows and other public events.
